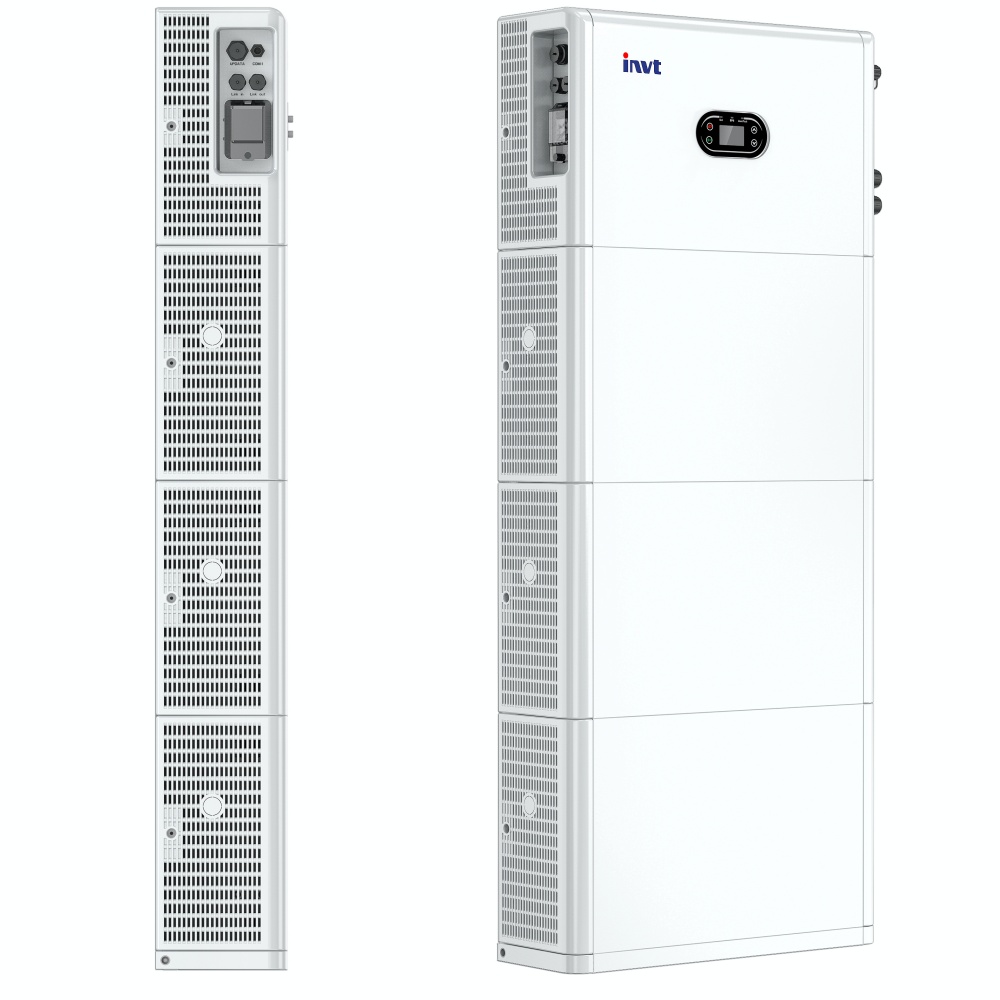

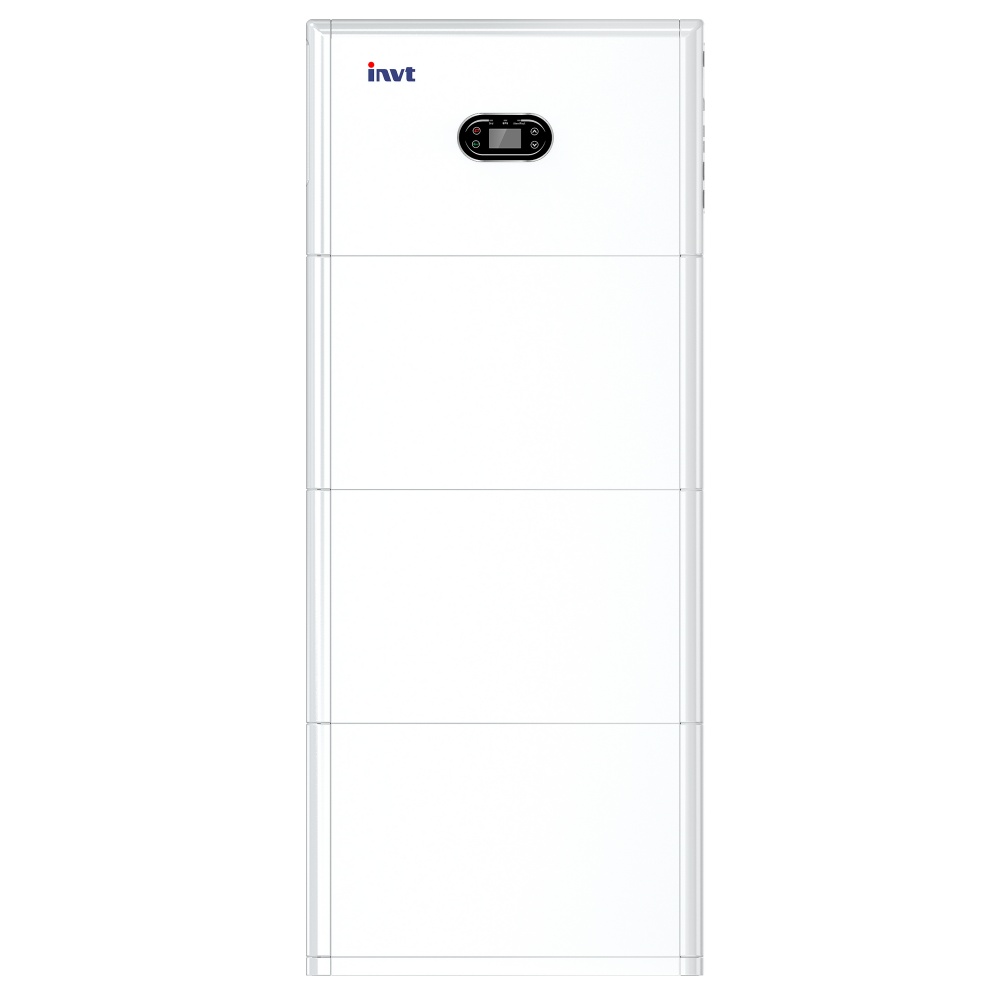

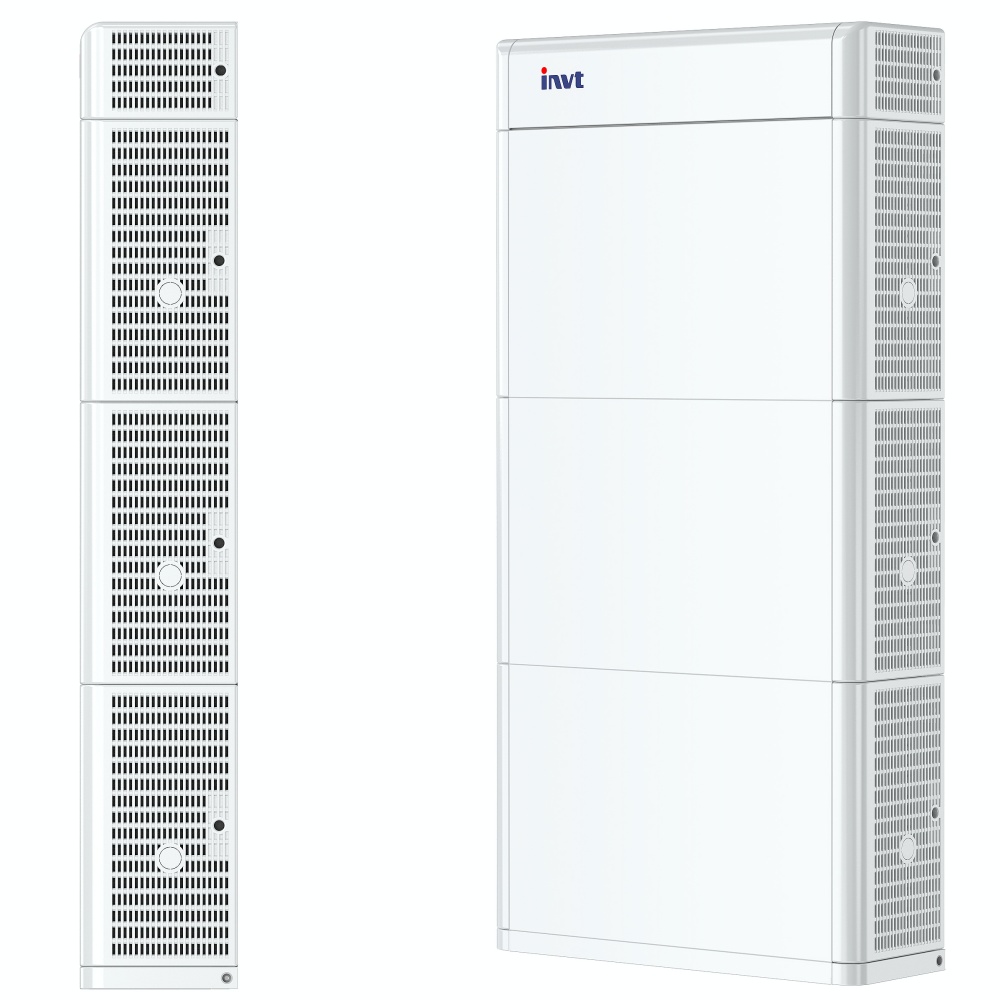

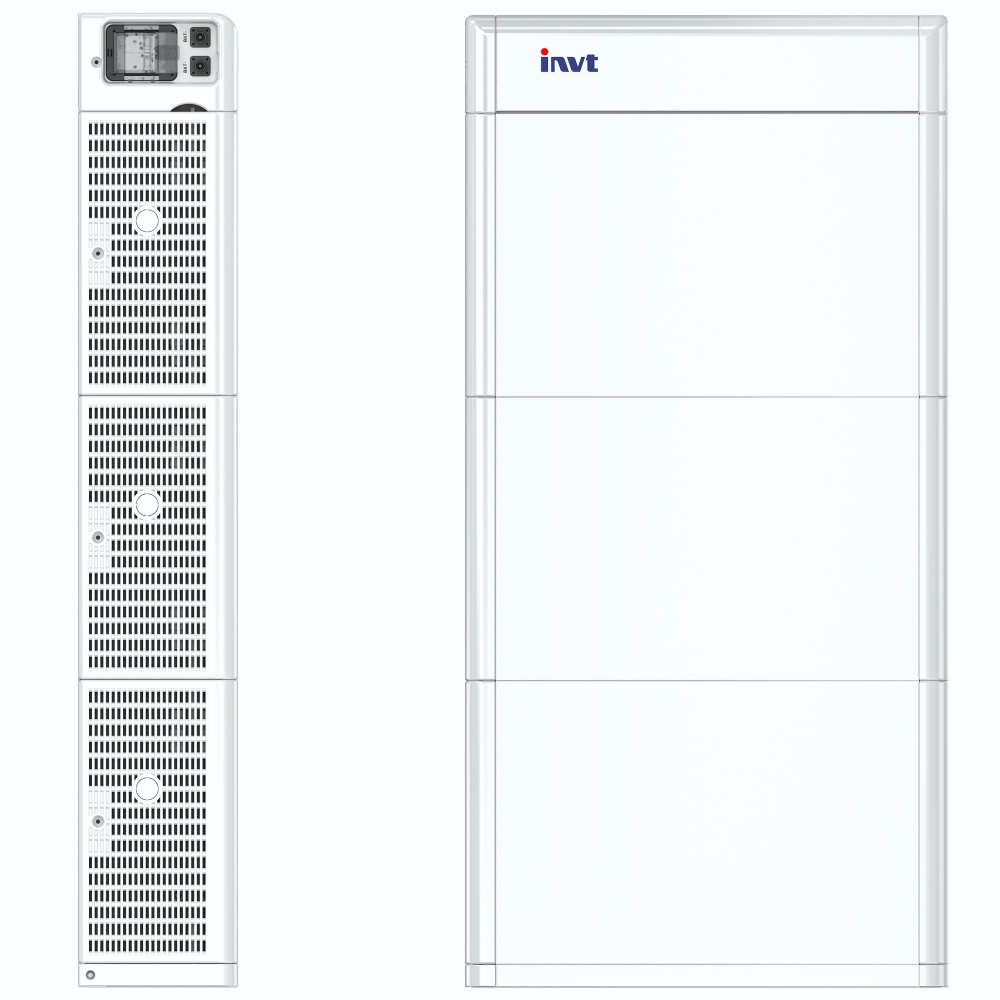

XD3-6KTL-AIO Hybrid Inverter

INVT XD3-6KTL-AIO energy storage system integrates a solar inverter and batteries in a dual-side design. It has an easy-to-install, quick-stack design that is also space-saving and sleek.
The system has a modular design of 5.12kWh, which supports expansion and customization. It also has smart connectivity and intelligent power management to enable self-generation and self-consumption, shaving peaks and filling valleys, and maximizing the benefits of using electricity, which is the preferred choice for the installed PV system household with the addition of energy storage.
  • Efficient & Higher Revenue
  •  Max. Efficiency 97.5%
  • 2 MPP trackers, 160% DC input oversizing
  • Max. charging/discharging current 100A for faster power backup
  • Max. PV input current 16A, compatible with high-power modules
  • Reliable & Worry-Free
  • DC & AC Type II SPD: prevent lightning damage
  • High ingress protection rating of IP65: supports outdoor installation
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • EPS Switching Under 10ms, UPS-level switching
  • Flexible & Abundant Configuration
  • Easy-install, quick-stack design
  • Modular design allows for scalability and customization
  • Multiple working modes and support parallel access to PV, batteries, normal loads, EV chargers, and grids
  • Support RS485/CAN/WiFi/4G/LAN/Bluetooth optional: remote monitoring and operation via PC or mobile phones
